Electric GPU (frequency converter) with 115 / 200V, 400Hz output, in the powers of 30, 45, 60, 90, 120 and 180Kva.

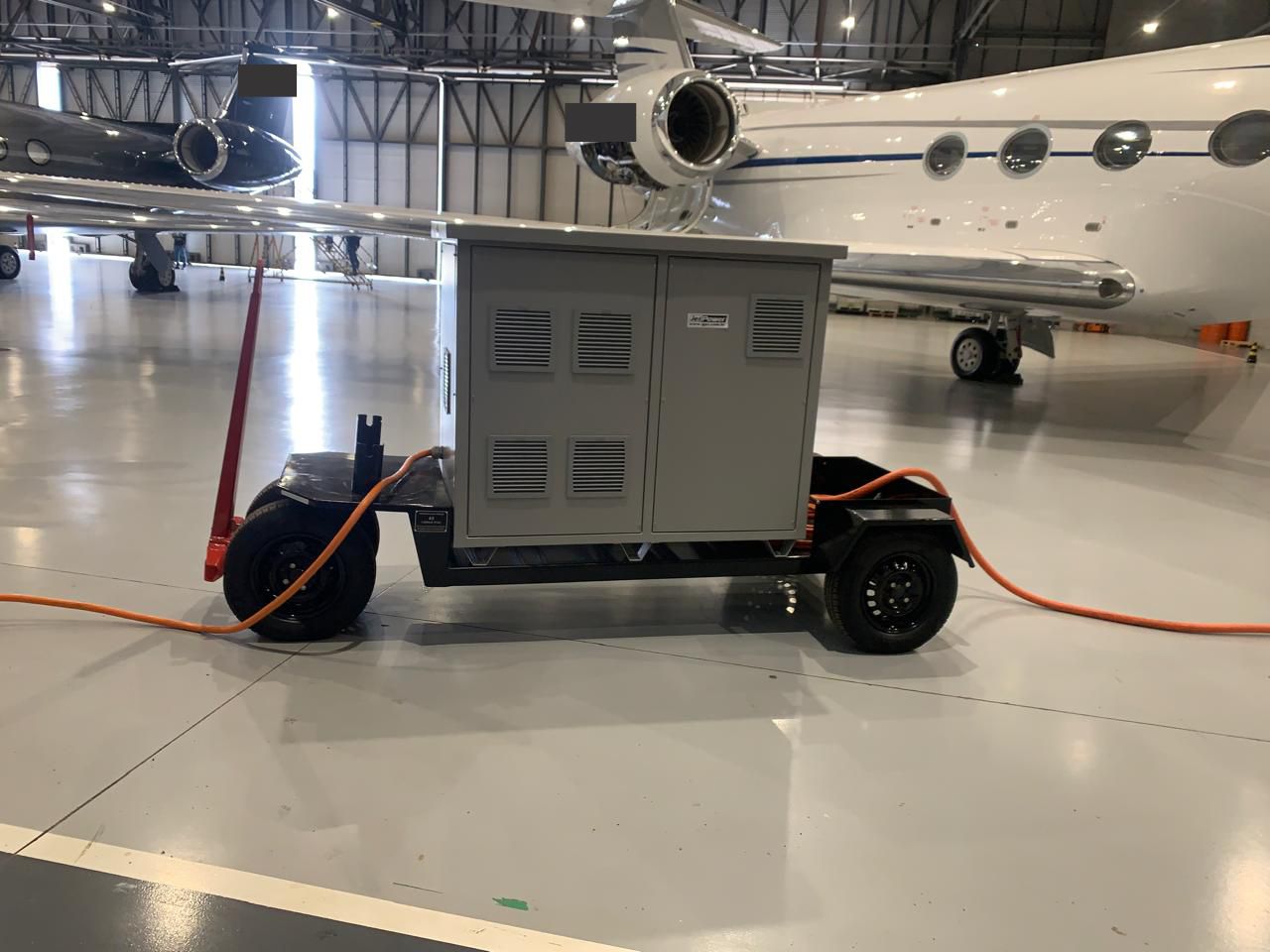

Box mount attached to a 4-wheel trailer for use in or near hangars.

It is a new "JET-POWER" GPU, which uses the high technology available today, aiming at high performance, low maintenance and high reliability.

Its construction is in modules of easy replacement, which in case of defect, will be replaced quickly and later recovered in the factory at a much lower cost, when they are out of warranty.

It is manufactured under the “JET-POWER” quality standard, with a three-year guarantee and easy maintenance and spare parts, quickly, without equipment stopped for long periods and with low labor costs, from the factory itself.

For more technical and commercial details, contact us.

Technical data (subject to change):

Input voltage: 380 / 440V ac, three-phase, 50 / 60Hz, normal (optional 220V, with additional transformer);

Output voltage: 115 / 200Vac, 400Hz;

Nominal power: 30, 45, 60, 90, 120 and 180Kva. Others on request;

Overload: 125% up to 15 minutes, 150% up to 35 seconds and 200% up to 10 seconds;

Phase angle regulation ± 2 ° in balanced loads;

Harmonic distortion ≤ 2 °;

Efficiency: 95% at full load;

Short circuit protection at the input and output;

Use: indoor or outdoor use, with protection against rain;

Forced cooling, with air filters;

Noise level: <70dB at 2 meters distance;

Working temperature: -40 ° to + 55 ° C

Relative air humidity: 10 to 95%;

Voltage regulation, at the output, with a maximum variation of 1%;

Aluminum cabinet and structures close to the inductive parts also in aluminum;

Electrostatic paint, polyester, in white;

Protection against phase failure, high or low input voltage;

Active output protection against high and low voltage, high and low frequency and overload;

Protection against internal faults, such as inoperative fan, open door, high temperature, contactor failure, power failure of power boards and semiconductors.

Digital panel with navigation keys;

Emergency button, protection circuit at the entrance and exit;

Power drop compensation up to 15%;

Easy access to internal components, providing reduced service time;

Side supports for input and output cables;

Input cable, standard length of 20 meters, with plug for the mains. Other measures on request;

Output cable, standard length 10 meters, with R67BS connector, standard 115Vac. Other measures on request;

Applicable technical standards: ABNT, ISO, VDE, MIL and SAE;

Dimensions and weight: on request, according to application and power requested;

OPTIONAL:

28Vdc, 200A output;

220Vac input with internal 220 / 440VAC, 50 / 60Hz transformer;

Different input and / or output cables.
